NVM-302D Network Video Decoder

The Q-SYS NVM-302D is a network HDMI decoder that comes pre-installed with a single-channel decode video app. Q-SYS NVM Series network video endpoints deliver high-quality, low-bandwidth network video at scale to a broad range of spaces for hospitality, entertainment, collaboration, government and more.

Note: This topic provides an overview of the NVM-302D. For complete specifications, installation documentation, and product drawings, see the NVM-302D product page on the Q-SYS website.

  • Q-SYS native video decoder

  • Mediacast AV routing paradigm enables high-quality, network-efficient video distribution at scale

  • Supports resolutions up to 4K60 4:4:4

  • RS-232 and IR connectivity for third-party device control

  • AV Bridging via USB-C (supported in a future firmware update)

Add the NVM-302D to your design Inventory from the Video category. The following components are available for the NVM-302D.

Standard Components

Related Components

Front Panel

  1. Power LED – Illuminates blue when the NVM is powered on.

  2. ID Button – Locates the NVM in Q-SYS Designer Software and Q-SYS Peripheral Manager.

  3. ID LED – Blinks green when placed into ID Mode via ID Button or Q-SYS Peripheral Manager.

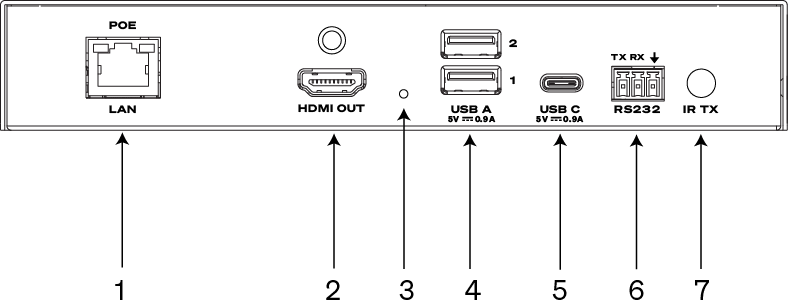

Rear Panel

  1. LAN / PoE – RJ-45 connector, 2.5GbE, 802.3at Type 2 Class 4 (30W from PSE, 25.5W at NVM). For connection to Q-LAN.

  2. HDMI Out – HDMI 2.0 Output with support for HDCP 2.3 and HDCP 1.4.

  3. Reset Button – Use a paper clip, or similar tool, to press and hold the reset button for 10 seconds to reset the NVM to factory values.

  4. USB A (x2) – USB 3.0 Type A Host Port. Supports 5VDC (900mA total across all USB A and USB C ports).

  5. USB C – USB 3.2 Gen 1x1 (5Gbps) Type C Host/Device Port, supporting DisplayPort Alt-Mode (DP 1.4 Source). Supports 5VDC (900mA total across all USB A and USB C ports).

  6. RS232 – Serial Transmit and Receive. Uses the black 3-pin Euro connector.

  7. IR TX Port – 3.5mm jack for connection to IR transmitter.

Category

Resolution

Frame Rate (Hz)

Chroma Sampling Level

Bit Depth

4K (UHD/DCI)

3840×2160, 4096×2160

23.976/24, 25, 29.97/30, 50, 59.94/60

4:4:4

8 bit

FHD/FHD+

1920×1080 (1080p), 1920×1200

23.976/24, 25, 29.97/30, 50, 59.94/60

4:4:4

8 bit

HD

1280×720 (720p)

23.976/24, 25, 29.97/30, 50, 59.94/60

4:4:4

8 bit

Ultrawide (21:9)

3440×1440, 2560×1080

23.976/24, 25, 29.97/30, 50, 59.94/60

4:4:4

8 bit

PC Resolutions

2560×1440, 2560×1600

60

4:4:4

8 bit

SD (NTSC)

720×480

29.97/30,59.94/60

4:4:4

8 bit

SD (PAL)

720×576

25, 50

4:4:4

8 bit

VGA

640 × 480

59.94/60

4:4:4

8 bit

Notes:

  • 4:2:2 & 4:2:0 Chroma subsampling supported at some resolutions.

  • The scaler is capable of operating in three modes (configurable within Q-SYS Designer Software):

    • Stretch-to-fit

    • Maintain aspect ratio

    • 1:1 pixel mapping

For complete product specs, refer to the Specifications Sheet on the NVM-302D product page at qsys.com.
