Mediacast Router

Use the Mediacast Router component to route multiple Mediacast streams to multiple destination Mediacast-capable devices. For example, you might want to see more than one camera on a single USB Video Bridge and switch between them. Or, you might want to create a design that handles video distribution for divisible or multipurpose room types.

Tip: The Mediacast Router configuration can easily be added to a Snapshot Bank for a simple and intuitive way to create presets.

Devices that send Mediacast streams

Devices that receive Mediacast streams

  • Any Q-SYS device with a USB Video Bridge. Refer to the USB Video Bridge topic to see a list of supported hardware.

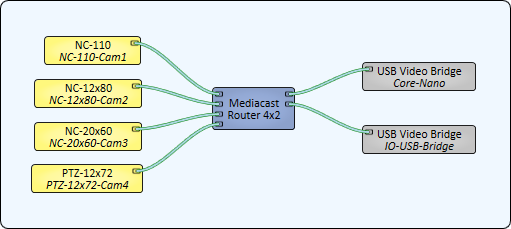

In this example, the Mediacast streams from four Q-SYS cameras can be routed to any of the USB Video Bridge-capable devices in the design – in this case, a Core Nano and an IO-USB Bridge.

Input n

These pins receive incoming Mediacast streams from the Video Output pins of Mediacast-capable components.

Output n

This pins send outgoing, routed Mediacast streams to the Video Input pins of Mediacast-capable components.

Input Count

Sets the number of input pins to receive Mediacast streams, from 1 to 255. The default is 2.

Output Count

Sets the number of output pins from which to send Mediacast streams, from 1 to 50. The default is 1.

Image Buttons

When set to Yes, the image that the camera is producing is displayed on the button. The default is No.

Output n Select

The combo box indicates what Input is currently being routed for the selected Output. You can also specify the Input number to route to that Output.

Output n Input n Select

For each Output, click an Input's button to route it to that Output. Only one input can be active at a time for a given output.

Pin Name

Value

String

Position

Pins Available

Output n

Input n Select

0

1

false

true

0

1

Input / Output

Select

1 to 255

1 to 255

-

Input / Output
