Core Nano

The Q-SYS Core Nano audio, video and control (AV&C) processor extends the applications of the Q-SYS Ecosystem into a wider range of smaller-scale installations across corporate, higher education, healthcare and beyond. Built on the same foundational technology as the rest of the Q-SYS processor portfolio, including the best-in-class Q-SYS Core 110f, Core Nano is designed for applications with lower network channel capacity and/or targeted processing requirements.

Note: For installation and connection instructions, drawings, and other documentation, refer to the Resources section on the Core Nano product page on the QSC website.

Features

Note: Q-SYS Scaling Licenses expand the capabilities of the Core 8 Flex and Core Nano processors. Refer to the Licensing topic for more information.

Feature	Core Nano
Total Network I/O	64 x 64
Onboard I/O	N/A
Software-based Dante Capacity	8 x 8 included (up to 32 x 32)
USB Audio Channel Count	8 x 8
AEC Processors	8
VoIP Instances	2
Onboard AV Bridging (USB)	Yes
Onboard GPIO	N/A
Onboard RS232 Control Ports	2
Q-SYS Peripheral Limit¹	32
Size	1/2 rack, 1RU

1. Includes native Q-SYS cameras, I/O, NV, TSCs, paging stations), Extensions and plugins with their “Is Managed” property set to “Yes”. It does not include Streaming I/O, Loudspeakers, Scripts or plugins with their “Is Managed” property set to “No”.

Q-LAN or AES67 Channels	64x64
Core-to-Core Streaming Channels	64x64
Dante Channels	Default = 8x8 (up to 32x32 upgrade available)
WAN/Media Streaming Channels	12x12
AEC Processors	8
Softphone Intances	Up to 2
Network Peripherals (max quantity)	32¹
MTP (Multi-Track Player)	Default = 16 (up to 32x32 upgrade available Spring 2021)
Media Drive Storage	Default = 14GB (128GB, 256GB or 512GB upgrades available Spring 2021)

USB B or USB C (Audio)
Bit Depth	24-bit
Channel Quantity	8x8
Sample Rate	48 kHz
USB Audio Device Hosting	Support for standard USB headset, speakerphone on USB type A connection (one device at a time)
Input
Sample Rate	48kHz or 16kHz, monaural
Bit Resolution	8-bit, 16-bit, 24-bit or 32-bit floating point (IEEE 754)
Format	Little-endian, signed or unsigned
Output
Sample Rate	48kHz or 16kHz, monaural
Bit Resolution	16-bit

Front Panel LEDs	POWER (blue LED), ID (green LED)
Front Panel Control	ID button (momentary)
Rear Panel Indicators	LAN A, LAN B: Link, Speed, Activity (multi-color LEDs)

Product Dimensions (L x W x H)	11.28 x 8.66 x 1.72 in (286.6 x 220.0 x 43.6 mm)
Product Weight	3.6 lbs. (1.6kg)
Shipping Weight (Gross Weight)	4.9 lbs. (2.2kg)

Power Consumption	28W typical, 60W maximum
Cooling	Active, single variable speed fan
Operating Temperature Range	0°C to +50°C
Storage Temperature Range	-20°C to +70°C
Relative Humidity	5% to 85% RH, non-condensing
BTU, Heat Load	95 BTU/Hr.

FCC 47 CFR Part 15, Subpart B, Class A (USA)	EAC: TR-CU-004, TR-TC-020 (Eurasia Conformity)
ICES-003:2016, CSA C22.1 (Canada)	RCM: AS/NZ S32 (Australia and New Zealand)
UL and C-UL listed (USA and Canada)	NOM (Mexico)
EN55032, EN55035, IEC 61000-3-2, -3 (Europe)	KN32, KN35, KC60065 (South Korea)
IEC 60065, IEC 62368-1, CB, CE (Europe)	RoHS: SJ/T 1164 (China)
RoHS2: Directive 2011/65/EU, 2017/2102 (Europe)	SANS 941, LOA (South Africa)
UKCA (United Kingdom)	SASO (Saudi Arabia)

Core Nano

1. Includes native Q-SYS cameras, I/O, NV, TSCs, paging stations), Extensions and plugins with their “Is Managed” property set to “Yes”. It does not include Streaming I/O, Loudspeakers, Scripts or plugins with their “Is Managed” property set to “No”.

Standard Components

External USB Audio

USB Video Bridge

USB Audio Bridge

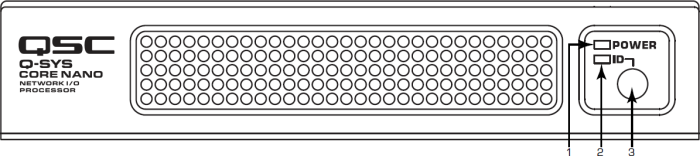

Front Panel

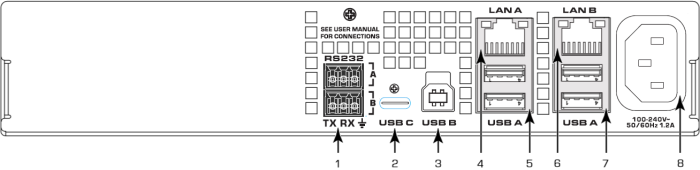

Rear Panel

1. Includes native Q-SYS cameras, I/O, NV, TSCs, paging stations, Extensions and plugins with their “Is Managed” property set to “Yes”. It does not include Streaming I/O, Loudspeakers, Scripts or plugins with their “Is Managed” property set to “No”.
