Core 110c

• 128x128 Network Audio Channels
• 16x16 USB Audio Channels
• 24 Channels of Total Analog Audio
• 8 Configurable Flex Channels
• 4x16 GPIO Logic Ports
• 1 VoIP line
• Single POTS Telephone line
• 3 Year Warranty
• 4 Channels of Routable AEC

The following Q-SYS Designer components are available for the Core 110c, depending on its Properties:

Standard Components

• Status (Core)
• Mic/Line In (Core 110f, 110c)
• Flex In (Core 110f, 110c)
• Line Out (Core 110f, 110c)
• Flex Out (Core 110f, 110c)
• POTS In
• POTS Out
• POTS Controller
• GPIO In (Core 110f, 110c)
• GPIO Out (Core 110f, 110c)
• Serial Port (Core, I/O Frame, I/O-22)
• Loudspeaker Monitor
• HID Keyboard
• HID Media
• HID Conferencing
• USB Input
• USB Output

External USB Audio

• External USB Audio Device In
• External USB Audio Device Out

USB Video Bridge

• USB Video Bridge

USB Audio Bridge

• USB Audio Bridge – Speakerphone / Sound Card In
• USB Audio Bridge – Speakerphone / Sound Card Out

Front Panel

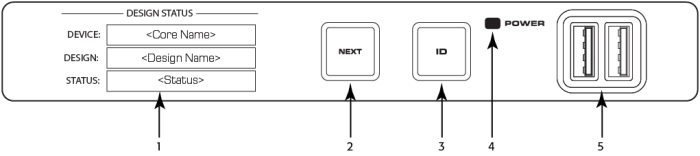

1. OLED Display – displays information about the core's settings and status.
2. Next button – cycles through the information pages
3. ID button – locates the Core in Q-SYS Designer GUI and Configurator
4. Power LED – illuminates blue when the Core is on
5. USB Type A Host connectors (2)

Rear Panel — Left Side

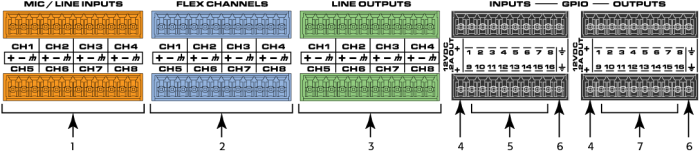

All audio inputs and outputs use one 3-position, 3.5mm Euro connector for each channel. GPIO uses one 10-position 3.5mm Euro connector for each row. Configure all inputs and outputs in Q-SYS Designer.

1. Mic/Line Inputs – eight channels, balanced or unbalanced, phantom power – orange
2. Flex Channels – eight user-configurable input/output channels, balanced or unbalanced, phantom power on inputs – blue
3. Mic/Line Outputs – eight channels, balanced or unbalanced - green

The following connections use the black Euro plug.

4. 12VDC, 0.2A Outputs + uses connector pins 1 and 11 (not numbered)
5. General-purpose Inputs – 16 inputs, 0-24V analog input, or contact closure (Pins labeled 1–16 equal pins 1–16 in the Q-SYS Designer GPIO Input component)
6. Earth ground – uses pins 10 and 20 (not numbered)
7. General-purpose Outputs – 16 outputs, open collector (24V, 0.2A maximum) with pull up to +3.3V (Pins labeled 1–16 equal pins 1–16 in the Q-SYS Designer GPIO Output component)

Rear Panel — Right Side

1. Telephone Line – RJ11 (6P2C)
2. Serial Number of the Core 110
3. External Power Input – Auxiliary power, 12VDC, 10A, 2-pin, 5 mm Euro connector.
4. RS232 – Transmit and receive, 3-pin, 5 mm, Euro connector
5. HDMI – for future use
6. USB Type B Device connector
7. LAN A – Q-LAN, control, VoIP, WAN streaming, AES67 etc., RJ45
8. USB Type A Host connectors (4) for future use
9. LAN-B – Redundancy, control, VoIP, etc.
10. A/C Power Input – IEC connector, 100-240V ~ 50-60 Hz, 150W, universal power supply

Design Status

• Device – The name of the Core as defined in Q-SYS Designer.
• Design – The name of the currently running design.
• Status –
  • OK – Audio is good, hardware is good.
  • Compromised – Audio is good but a redundancy mechanism is active (one LAN down but the other is still up) or a non-fatal hardware problem exists (fans too slow, temperature higher than expected, etc.)
  • Fault – Audio is not passing, or hardware is malfunctioning or mis-configured
  • Missing – A piece of hardware, defined in the design, has not been discovered. Audio is not passing through that piece of hardware.
  • Initializing – Starting the firmware, configuration update, and the design. Audio is obviously bad.
  • Not Present – A virtual component in the design, that is designated as Dynamically Paired, and Not Required, has no hardware assigned to it.

System Status

• Firmware – A three-section number identifying the major release, minor release, and maintenance release. For example, 5.0.06.
• Temp – The current chassis temperature of the Core.
  • Compromised threshold = 60° C
  • Fault threshold = 70° C
• Fan Speed – This number varies with the temperature.

LAN A

• Static or Auto – Displays next to LAN A, indicates if the Core's IP Address is Static or Automatic.
• IP Address – The IP Address assigned to the Core's LAN A. LAN A is the primary Q-LAN connection to the Core, and is required.
• Net Mask – The Net Mask assigned to the Core.
• Gateway – The Gateway assigned to the Core.

Note: You can edit this information in Core Manager.

LAN B

LAN B is used for redundancy, and is not required. The information is the same as LAN A.

Input / Flex In Channels Status

The Input and Flex Input screens show the Mute, Clip, Signal, and +48V (phantom power) for the eight Mic/Line input channels.

• Mute – Displays a "muted loudspeaker" when the channel is muted.
• Clip – Displays a solid circle under the channel having an input signal that is overdriving the associated channel input.
• Signal – Displays a solid circle when there is a signal present on the associated channel.
• +48V – Displays a solid circle when the phantom power is turned on for the associated channel.

Note: If the Flex channel is set to Output, there is no information for that channel on the Flex In screen.

Output / Flex Out Channels Status

The Output and Flex Output screens show the Mute, Clip, and Signal, for the eight Mic/Line output channels.

• Mute – Displays a "muted loudspeaker" when the channel is muted.
• Clip – Displays a solid circle under the channel having an output signal over driving the associated channel output.
• Signal – Displays a solid circle when there is a signal present on the associated channel.

Note: If a Flex channel is set to Input, there is no information shown under the same channel on the Flex Out screen.

Input Frequency Response 20 Hz to 20 kHz @ +21 dBu	+0.05 dB/-0.5 dB
Input THD+N @ 1 kHz
@ +21 dBu Sensitivity and @ +21 dBu input	< 0.1%
@ +21 dBu Sensitivity and @ +10 dBu input	< 0.0015%
@ +10 dBu Sensitivity and @ +8 dBu input	< 0.001%
@ -10 dBu Sensitivity and @ -10.5 dBu input	< 0.001%
@ -39 dBu Sensitivity and @ -39.5 dBu input	< 0.007%
Input to Input Crosstalk @1 kHz @ +21 dBu sensitivity @ +10 dBu sensitivity @ -10 dBu sensitivity @ -39 dBu sensitivity	110 dB Typical, 90 dB Max 105 dB Typical, 90 dB Max 100 dB Typical, 90 dB Max 75 dB Typical
Input Dynamic Range
@ +21 dBu Sensitivity	> 109.5 dB
@ +10 dBu Sensitivity	> 106.4 dB
@ -10 dBu Sensitivity	> 104.6 dB
Input Common Mode Noise Rejection
@ +21 dBu Sensitivity	< 51, 20 Hz – 3 kHz < 43, 20 Hz – 10 kHz < 36, 20 Hz – 20 kHz
@ +10 dBu Sensitivity	< 57, 20 Hz – 3 kHz < 47, 20 Hz – 10 kHz < 41, 20 Hz – 20 kHz
@ -10 dBu Sensitivity	< 67, 20 Hz – 3 kHz < 58, 20 Hz – 10 kHz < 53, 20 Hz - 20 kHz
@ -39 dBu Sensitivity	< 60, 20 Hz – 3 kHz < 54, 20 Hz – 10 kHz < 50, 20 Hz – 20 kHz
Input Impedance (balanced)	7.2k Ω Nominal
Input Sensitivity Range (1 dB Steps)	-39 dBu min to +21 dBu max
Output Frequency Response 20 Hz to 20 kHz @ all settings	+0.2/-0.5 dB
Output THD	0.005% Typical, +21dBu Max Output Level
EIN (no weighting, 20 Hz to 20 kHz)	< -121 dB
Output Crosstalk @ 1 kHz	> 100 dB Typical, 90 dB max
Output Dynamic Range	> 108 dB
Output Impedance (balanced)	332 Ω
Output Level Range (1 dB Steps)	-39 dBu min to +21 dBu max
Q-LAN Channels	128
AEC Channels Q-SYS Core 110f Q-SYS Core 110c	16 4
Core-to-Core Streaming Channels	128
MTP	Default = 16, With optional MD-110 SSD and MTP-32 = 32
USB B (Audio)
Bit Depth	16-bit
Number of Channels	up to 16x16
Sample Rate	48 kHz
Phantom Power	+48VDC, 10mA per input max
Sampling Rate	48 kHz
Power Consumption	60 watts, typical. 120 watts max
A/D – D/A Converters	24-bit
BTU / Heat load	205 BTU/Hour
Device Dimensions (HxWxD)	1.7" (44 mm) x 18.9" (481 mm) x 11.3" (288 mm) Note: Depth without AC connector is 11.1" (284 mm)
Shipping Dimensions (HxWxD)	6" (152mm) x 23" (584mm) x 14" (356mm)
Device Weight	10.8 lb (4.9kg)
Shipping Weight	11.5 lb (5.2 kg)
Compliance	FCC Part 68 / TIA-968-B (USA) JATE (Japan) Industry Canada CS-03 (Canada) ES203 021, CE, RoHS (Europe) UL and C-UL listed (USA & Canada) AS/ACIF S002 and RCM (Australia) PTC200 (New Zealand) AC (Eurasian Customs Union) ANATEL Resolution 473 (Brazil) NOM-151-SCTI (Mexico) PSTN01 (Taiwan)
