TSC-101-G3

The Q-SYS TSC Series Gen 3 are high-performance network touch screen controllers native to Q-SYS. The TSC-101-G3 is a 10.1-inch, PoE-capable (power over Ethernet) device that supports a wide range of fully-customizable user control interface applications for any space.

Note: This topic provides an overview of the TSC-101-G3. For specifications and installation documentation, see the TSC-101-G3 product page on the QSC website.

  • High performance 10.1-inch network touch screen controller native to the Q-SYS Platform

  • Enhanced onboard processor with increased resolution and significantly improved screen transitions on all models

  • Customizable RGB LED status indicators

  • Integrated proximity sensor wakes the screen on approach while an ambient light sensor adjusts screen brightness

  • Build intuitive and scalable UCIs in the same software program as your DSP and control programming for a streamlined design and deployment process

  • Supports CSS-based styling letting users build more dynamic UCI themes and apply global styles across multiple UCIs

  • UCI Controller [BETA] is an alternative method of building UCIs from a template of control types to simplify deployment and scalability of multiple UCIs

  • Supports Power over Ethernet to allow for power and data on a single cable for simple, single cable installation

  • Supports landscape or portrait orientation when wall-mounted

  • Optional table top mount accessory available

  • Universal mounting options: Included accessories for mounting to US standard and European wall and junction boxes

These Inventory components are available for the TSC-50-G3:

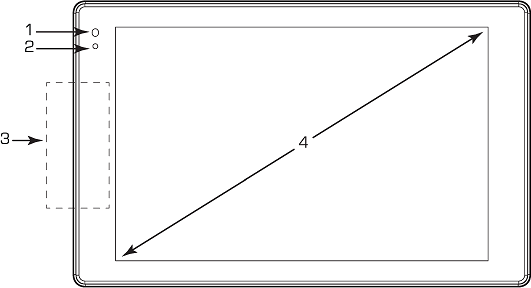

Front Panel

  1. Proximity sensor. Refer to the Sensors topic.
  2. Ambient light sensor. Refer to the Sensors topic.
  3. NFC antenna. Refer to the Sensors topic.
  4. 10.1 in. 1920 x 1200 display

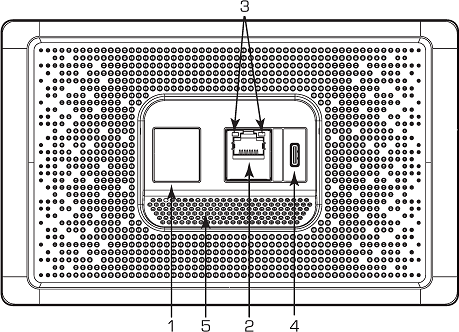

Rear Panel

  1. Docking magnet

  2. RJ45, PoE/+ in

  3. LAN LEDs

    • Left: Link/Activity

    • Right: Speed

  4. USB Type C

  5. Exhaust vents

Profile

  1. Mounting point for wall-mount bracket

  2. Regulatory markings

  3. Model identification

  4. Programmable RGB LEDs. Refer to the Lightbar (TSC-G3 Series) topic.

Product specifications and dimension drawings for the TSC-101-G3 can be found on the TSC-101-G3 product page on the QSC website.
