AV I/O (NV-1-H-WE)

Input Pins

HDMI AV Input

There is one HDMI input on the NV-1-H-W. Connect this pin to a Generic AV Source component HDMI AV Output pin.

Output Pins

AV Output

The AV Output pins send combined video and audio signals over the Q-LAN network. The output correspond to a respective AV Input pin.

Input Pins

HDMI AV Input 1

There is one HDMI input on the NV-1-H-W. Connect this pin to a Generic AV Source component HDMI AV Output pin.

Output Pins

Mediacast Output 1

Primary encoded Mediacast stream output. This output correspond to a respective HDMI AV Input 1.

Camera Output

Note: Mediacast Streams are always multicast.

In this example, a single display is being used in a small conference room.

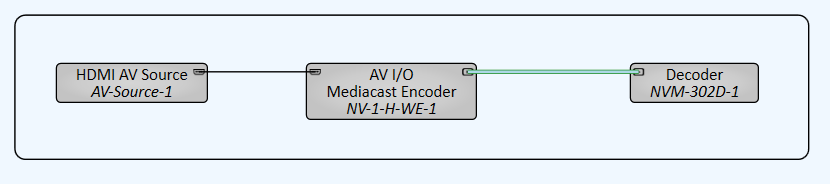

In this example, an NV-1-H-W is configured as a Mediacast Encoder. An HDMI source is connected to the NV-1-H-W, which encodes the video and sends it as a Mediacast stream to an NVM-302D Decoder. Set the NVM-302D's Properties > Mediacast > Input Count to at least "1".

Device Type

Can set the NV-1-H-W as a Shift Encoder or Mediacast Encoder. Selecting Shift Encoder reveals Shift AV Output 1 pin.

AV IP Streaming

This property determines the network streaming method for Q-LAN AV streams:

• Compiler Choice: (Default) Select this option to allow Q-SYS Designer Software to determine whether unicast (one-to-one) or multicast (one-to-many) is best for your configuration. This is the recommended option.
• Unicast: Select this option when your design contains one-to-one AV routing, meaning that each AV output pin in your design is connected to a single AV input pin.
• Multicast: Select this option when your design contains one-to-many AV routing, meaning that an AV output pin is connected to multiple AV input pins.

Device Type

Can set the NV-1-H-W as a Shift Encoder or Mediacast Encoder. Selecting Mediacast Encoder reveals Mediacast Output 1 pin.

Source

Displays the AV Stream in which it is wired.

IP Streaming

LED indicates whether the Encoder is actively transmitting AV audio and video data to a Decoder via SRTP on the Q-LAN network. This applies to both unicast or multicast streams.

SRTP Address

Displays the IP address that the Encoder is using to send AV network audio and video streams directly to Decoders:

• For unicast streams, this is the Encoder's IP address.
• For multicast streams, this is the multicast address assigned in Core Manager.

Bitrate (Mbps)

Specify the maximum average network video bitrate the Encoder can use to send AV streams to Decoders, from 50 to 800. The default is 750.

Lower bitrates consume less network bandwidth, but at the expense of compromised video quality during fast motion and transitions. For acceptable video quality:

• 4K60 stream – set the bitrate to at least 650 Mbps.
• 1080p streams – set to the bitrate so that each stream can use at least 250 Mbps.

Note: The Bitrate value is shared across all AV streams. For example, if you set the Bitrate to 600, the first AV stream can use a maximum of 600 Mbps. If a second stream becomes active, both streams can use 300 Mbps. If a third stream becomes active, each stream can use 200 Mbps.

Ref Frame Interval

This value determines how often video artifacts introduced by network errors are eliminated in the video stream. The value, between 90 and 255, is the number of video frames before a complete refresh occurs. The default is 90. A longer interval results in a lower video bitrate (thus consuming less network bandwidth), but at the expense of video artifacts persisting during the interval.

Encoder Mode

This property determines the maximum allowed AV stream resolution and what happens when the Encoder video streaming capabilities are exceeded.

• 4K60 max - One Hot Plug Event: (Default) This option allows a maximum stream resolution of 4K60. However, because an Encoder is limited to processing a single stream at resolutions above 1080p60, a request from a Decoder to process an additional AV stream on another input triggers a "hot plug event": Any Encoder input EDID with a resolution greater than 1080p60 is automatically re-negotiated down to 1080p60 maximum, thus allowing the Encoder to provide up to three streams. When this occurs, there is a momentary disruption of video processing across all AV streams. (This negotiation and disruption mimics what occurs when unplugging and plugging back in an HDMI cable, hence the term.) When all AV inputs become idle, the source EDIDs then reset to allow resolutions greater than 1080p60 again.
• 1080p60 max - No Hot Plug Events: This option limits all streams to 1080p60 maximum. Because an Encoder can process three simultaneous streams up to 1080p60, there is no EDID re-negotiation when a Decoder requests subsequent streams.

Input Select HDMI

This enables or disables the NV-1-H-W HDMI input.

When set to true, HDMI source content is routed into a single AV stream and can also be selected on the Encoder's local HDMI output.

When set to false, USB-C source content is routed into a single AV stream and can also be selected on the encoder’s local HDMI output.

Note: Switching between USB-C and HDMI modes is not seamless. It is a hard switch that allows for USB-C content or HDMI content, not both simultaneously. It can take up to 5 seconds for connections to recover when changing the Input Select HDMI toggle button.

Source Selection (NVM-E1 with dual HDMI inputs only)

When the Mediacast Encoder has 2 HDMI inputs but only 1 Mediacast Output, input selector buttons appear:

• Select Input 1: Selects HDMI AV Input 1 as the encoding source.

• Select Input 2: Selects HDMI AV Input 2 as the encoding source.

Mediacast Views - IP Streams

Mediacast Stream (LED)

LED indicates whether the Mediacast Encoder is actively transmitting Mediacast streams on the Q-LAN network.

RTP Address

Displays the IP address being used for the Mediacast streams. This is the multicast address assigned in Core Manager.

Max Format

Displays the highest resolution/frame rate video format that all connected Mediacast sinks (downstream decoders) can support. The stream's actual Video Format will never exceed the Max Format.

Video Format

Displays the current video format of the Mediacast stream (for example, "1080p30").

Max Bitrate (Mbps)

Specify the maximum average network video bitrate the Mediacast Encoder can use for its Mediacast streams.

HDMI Input Preview

Displays a low-resolution preview image of the HDMI input signal being encoded as a Mediacast stream. This preview updates periodically and is useful for confirming the correct source is connected and active.
