TSC-47w-G2

The TSC-47W-G2 In-Wall Touch Screen Controller combines capacitive touch technology with a bright 400 nits, high resolution 960 x 540 full color LCD for state-of-the-art control of a Q-SYS system. Control elements and layout for GUIs on this versatile touch screen/controller/dialer are completely customizable to provide end users a full range of controls, from complete system control and monitoring, to one-touch deployments of pre-programmed presets.

Note: This product is discontinued. Reference the TSC-55w-G2 replacement model. For TSC-47w-G2 installation instructions and specs, see the Discontinued Products page on the Q-SYS website.

  • Capacitive LCD touch surface: In-plane switching (IPS) technology
  • High resolution display: 960x540 pixels with 400 Nits (brightness)
  • Power over Ethernet: Allows for simplified single cable installation
  • Universal mounting options: Included accessories for mounting to US standard and European wall and junction boxes
  • Versatile: Ability to operate in portrait or landscape orientation
  • Complete design freedom: Q-SYS Designer Software includes User Control Interface (UCI) tool for customizable user control

Add the TSC-47w-G2 to your design inventory from the Peripherals category. The following components are available for the TSC-47w-G2:

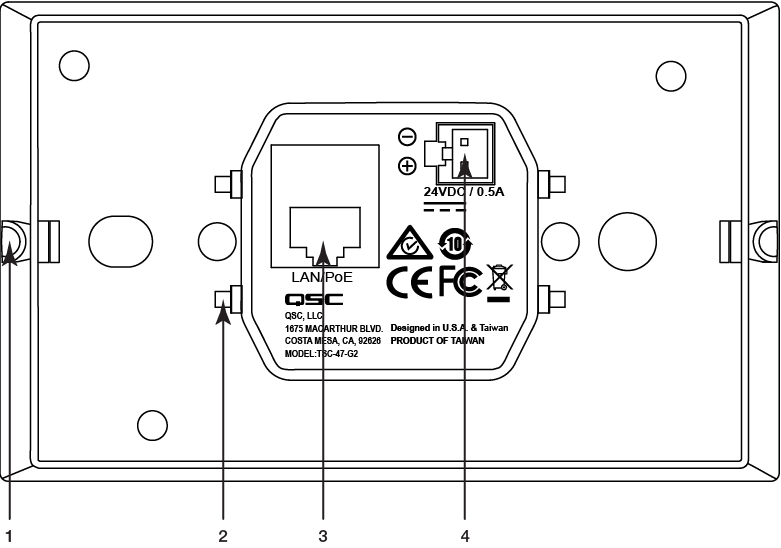

Rear Panel

  1. Security lock/mounting screws (2x) for locking the Touchscreen Controller to the installed Universal Wall-Mounting-Bracket
  2. Mounting clips (4x) for holding the Touchscreen Controller to the Universal Wall-Mounting-Bracket before tightening the security screws
  3. Female RJ45 for connection to Q-LAN. PoE capable
  4. 24VDC external power supply connection The power supply is not included - see Specifications for power supply details.

Display (Front Panel)



User Interface

4.7 in. (119 mm) diagonal viewing area

HD

Projected capacitive touch

Multi-position touch and gesture surface, in-plane switching (IPS) technology,

16.7M colors

Resolution

960x540

Brightness

400 Nits

Rear Panel



RJ-45

LAN, 1000 Mbps, LEDs for network status and activity

Auxiliary Power Receptacle

2-position latching

Plug (not supplied)

Manufacturer: JST

Housing: VHR-2N

Crimp terminals: SVH-21T-P1.1

Power



Power Over Ethernet

IEEE 802.3af class 3 PD (PoE). Receives power via LAN port

Auxiliary

DC power supply (not included) +24VDC @ 0.5A minimum

Dimensions



Panel Dimensions (HWD)

3.1 in. X 5.2 in. X 1.4 in. (80 mm X 132 mm X 35 mm)

Screen Dimensions

4.7 in. (119 mm) diagonal viewable area

Weight



Product Weight (net)

6 oz. (171 g)

Shipping Weight (gross)

8 oz. (227 g)

Environment



Operating Temperature

32°-122° F (0°-50° C)

BTUs

40 maximum, 23 typical

Humidity

5 to 85% RH, non-condensing

Vibration

20 grms

Agency

IEEE 802.3af, IEEE 802.3ab, FCC 47 CFR Part 15 Class B, IC ICES-003, EN55032, EN55022, EN55024, EU ROHS DIR, CHINA ROHS DIR, WEEE, RCM, EFUP 10YR

For more information about discontinued Q-SYS products, including related documentation, see the Q-SYS / Legacy DSP page on the QSC website.
